SERIES 65/65A

Mining

SERIES 65/65A

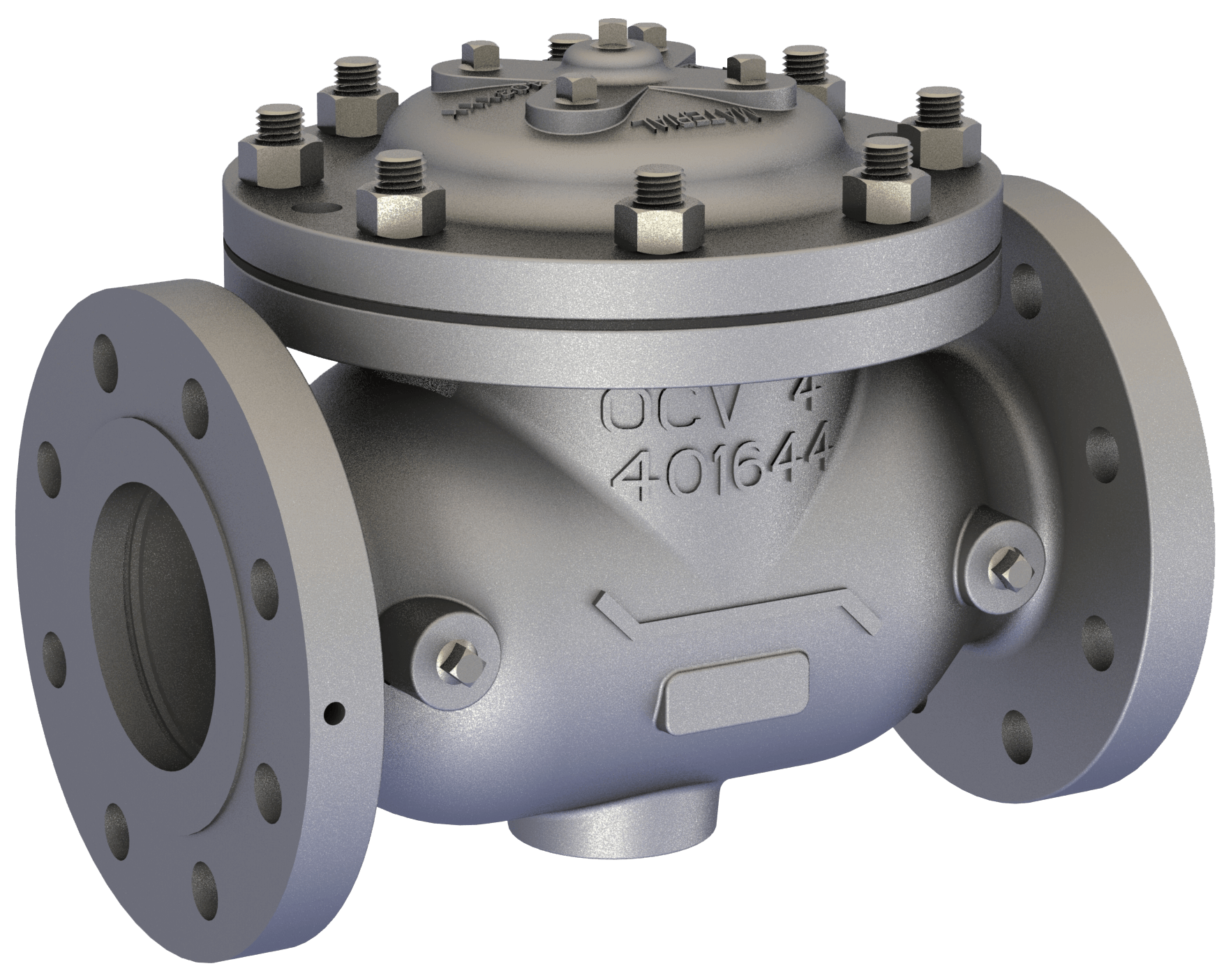

BASIC CONTROL VALVE

The OCV Basic Control Valve 65 Globe and 65 Angle is a full port engineered valve. When equipped with a variety of pilots and accessories the valve performs a wide range of automatic fluid control, making it a specified valve in municipal water, fire protection, irrigation, industrial, petroleum, mining, and aviation fueling systems. The 65 is dependable and hard working; with a simplicity of design that ensures minimal part wear for exceptional performance and longevity. Self-contained, the valve operates automatically off line pressure. The 65 consists of three major components: body, bonnet and diaphragm assembly.

FEATURES

  • Operates automatically off line pressure.
  • Heavy-duty, nylon-reinforced diaphragm isolates top chamber operating pressure from bottom chamber line pressure.
  • Rectangular-shaped, soft seat seal provides drip-tight Class VI closure.
  • Diaphragm assembly guided top and bottom.
  • Throttling seat retainer for flow and pressure stability.
  • Easily maintained without removal from the line.
  • Diaphragm replaced without removing internal stem assembly.
  • Replaceable seat ring.
  • Alignment pins assure proper reassembly after maintenance.
  • Center-tapped bonnet facilitates installation of position indicator or valve-actuated switches.
  • Ductile iron and steel valves are epoxy coated inside and out, for maximum corrosion protection.
  • Valves are factory tested.
  • Valves are serial numbered and registered to facilitate replacement parts and factory support.

BASIC CONTROL VALVE

The OCV Basic Control Valve 65 Globe and 65 Angle is a full port engineered valve. When equipped with a variety of pilots and accessories the valve performs a wide range of automatic fluid control, making it a specified valve in municipal water, fire protection, irrigation, industrial, petroleum, mining, and aviation fueling systems. The 65 is dependable and hard working; with a simplicity of design that ensures minimal part wear for exceptional performance and longevity. Self-contained, the valve operates automatically off line pressure.

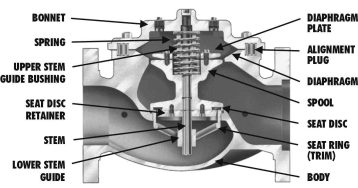

The 65 consists of three major components: body, bonnet and diaphragm assembly.

FEATURES

  • Operates automatically off line pressure.
  • Heavy-duty, nylon-reinforced diaphragm isolates top chamber operating pressure from bottom chamber line pressure.
  • Rectangular-shaped, soft seat seal provides drip-tight Class VI closure.
  • Diaphragm assembly guided top and bottom.
  • Throttling seat retainer for flow and pressure stability.
  • Easily maintained without removal from the line.
  • Diaphragm replaced without removing internal stem assembly.
  • Replaceable seat ring.
  • Alignment pins assure proper reassembly after maintenance.
  • Center-tapped bonnet facilitates installation of position indicator or valve-actuated switches.
  • Ductile iron and steel valves are epoxy coated inside and out, for maximum corrosion protection.
  • Valves are factory tested.
  • Valves are serial numbered and registered to facilitate replacement parts and factory support.
