8101





High Level Shut-Off Valve

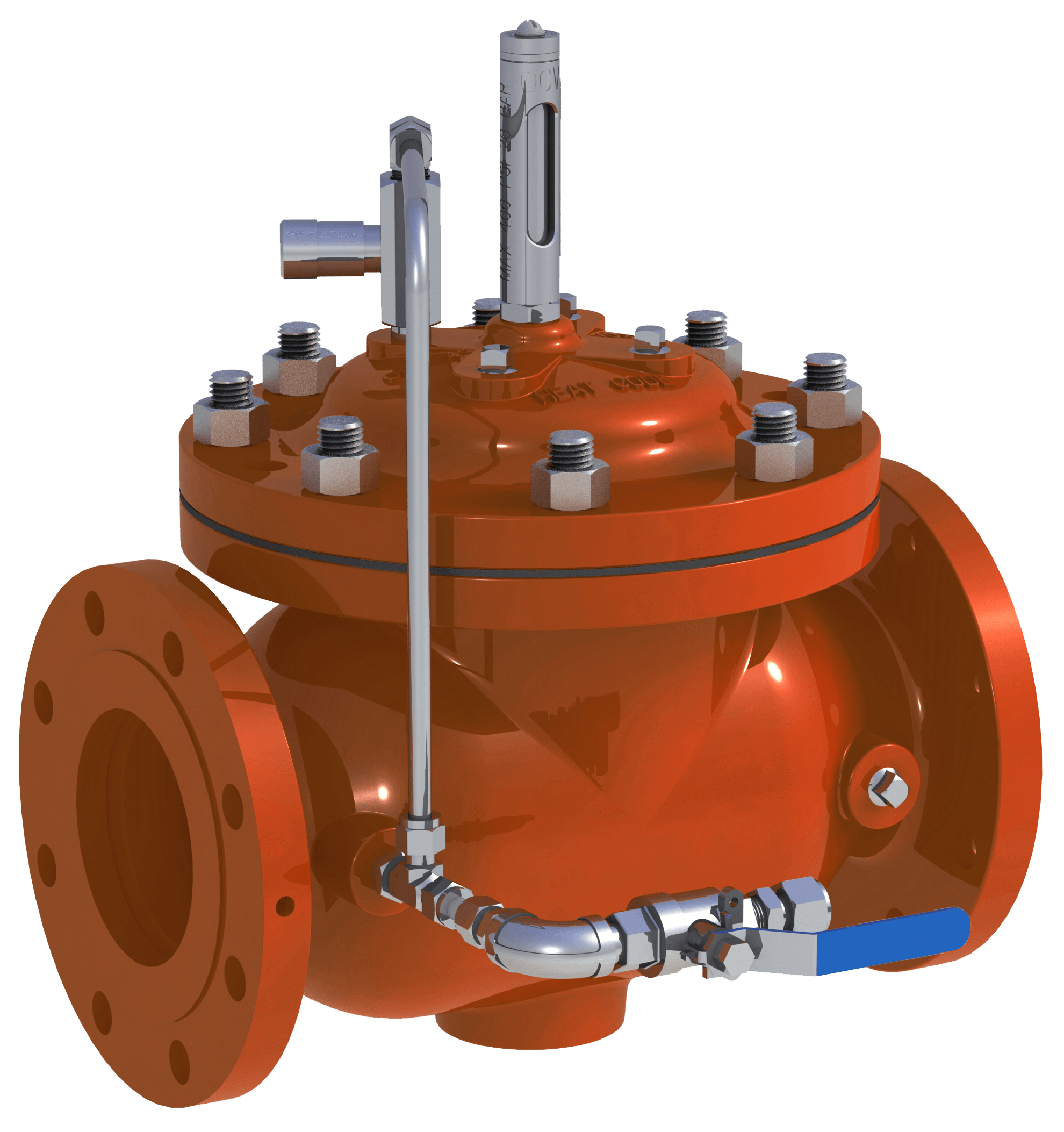

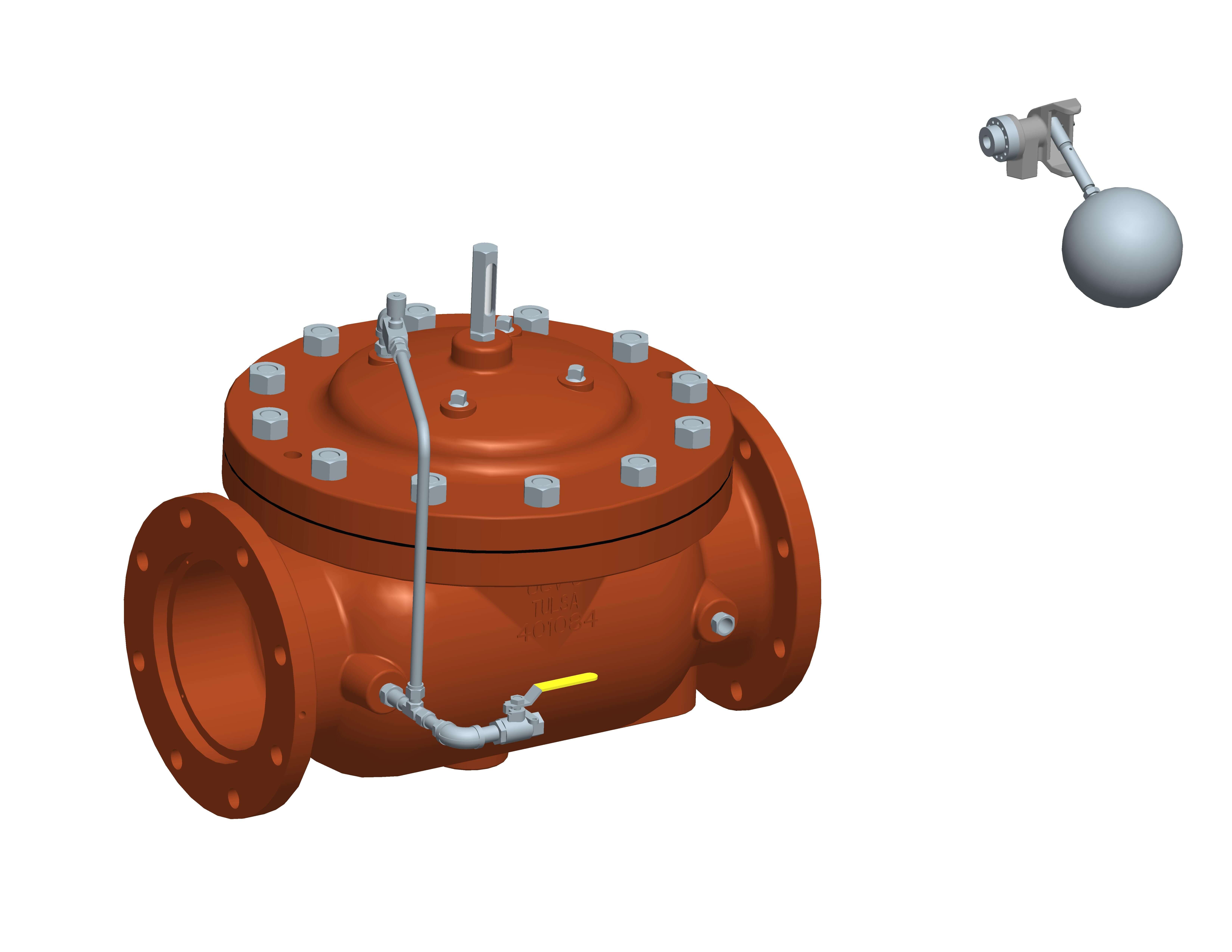

The high level shut-off valve shall be installed on the inlet line to the tank and shall close when the high level is reached. The high level shut-off valve shall include a simple, two-way, non-adjustable float pilot to be installed in the tank at the desired tank level and be connected to the main valve by two, customer-installed sense lines. The OCV 8101 is applicable anywhere it is necessary to automatically control the high level in storage tanks where the float pilot can be mounted inside the tank.

FEATURES & BENEFITS
  • Allows tank filling and shuts off on high level
  • Remote-mounted float pilot (inside tank)
  • Two field-installed lines between valve and float pilot
  • Manual tester available on float pilot
  • Can be maintained without removal from the line
  • Adjustable response speed
  • Factory tested and can be pre-set to your requirements
