DIN Flange Data

TABLE 3: PN-10 (IRON ONLY)
WORKING PRESSURE =
10 BAR (145 PSI)

din flange 3

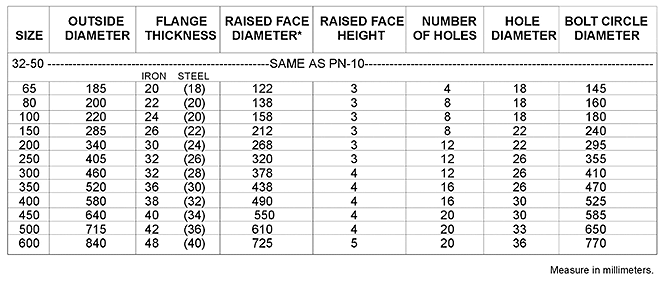

TABLE 4: PN-16 (IRON OR STEEL)
WORKING PRESSURE =
16 BAR (232 PSI)

din flange 4

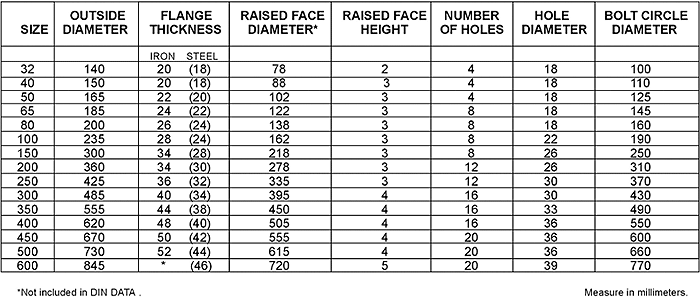

TABLE 5: PN-25 (IRON OR STEEL)
WORKING PRESSURE =
25 BAR (362 PSI)

din flange 5

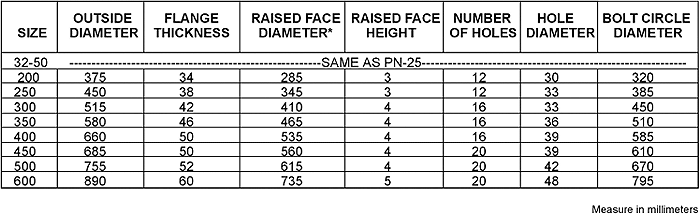

TABLE 6: PN-40 (STEEL ONLY)
WORKING PRESSURE =
40 BAR (580 PSI)

din flange 6
